Introduction to Neuronal Oscillations

Why Synchronization Matters

  • Key Phenomenon: Synchronization between neurons is essential for EEG recording. Without it, individual action potentials are too weak to detect at the scalp.
  • EEG as a Summation: EEG signals reflect the synchronized activity of large neuronal populations, not single neurons.

Neuronal Oscillations: Latent vs. Manifest

  • Latent Construct: Neuronal oscillations are theoretical processes occurring in the brain (e.g., rhythmic activity of neuronal networks).
  • Manifest Variable: EEG is the measurable outcome of these oscillations, recorded as electrical activity at the scalp.

Types of Synchrony

Term Definition Example
Synchrony Simultaneous occurrence of EEG waves across distinct brain regions. Alpha waves (8–12 Hz) synchronized across occipital regions during rest.
Hypersynchrony Abnormally increased synchronization, often linked to pathological states (e.g., epilepsy). Generalized spike-and-wave discharges in absence seizures.
Asynchrony Non-coherent or desynchronized EEG waves across regions. Desynchronized beta activity during active cognition.

Universality of EEG Oscillations

  • Cross-Species Phenomenon: EEG oscillations are observed across animals, suggesting a fundamental role in brain function.
  • Functional Roles: Oscillations are associated with cognitive processes (e.g., attention, memory), but their causal relationship with mental processes is debated. They may sometimes be epiphenomena—secondary effects rather than direct causes.

Key Considerations

  • Causality vs. Correlation: Oscillations may correlate with mental processes but are not always causally linked.
  • Clinical Relevance: Hypersynchrony (e.g., in epilepsy) or asynchrony (e.g., in schizophrenia) can indicate neurological or psychiatric conditions.

Oscillation Properties

Core Properties

Property Description Example/Implication
Frequency Number of cycles per second (Hz). Alpha (8–12 Hz), Beta (13–30 Hz), Delta (0.5–4 Hz).
Amplitude Strength (voltage) of the oscillation. Delta waves have higher amplitude than beta waves.
Power Amplitude squared (reflects energy). Used in power spectral density (PSD) analysis.
Phase Position in the oscillation cycle (0° to 360°). Critical for synchronization and connectivity studies.
Time Temporal dynamics (e.g., duration, latency). Phase resetting or event-related synchronization.
Location Electrode (scalp) or source (brain region) where the oscillation is recorded. Frontal theta vs. occipital alpha.

Phase

  • Phase is independent of amplitude, but if amplitude is zero, phase is undefined.
  • Uncertainty Principle: In noisy signals (like EEG), amplitude measurement errors propagate to phase estimation.
    • High Amplitude: Phase is more stable (less sensitive to noise).
    • Low Amplitude: Phase is highly uncertain (noisy).

Phase Coding:

  • Synchronization between action potential timing and field potential phase mediates connectivity between neural networks.
  • Example: Theta-gamma coupling in the hippocampus during memory tasks.

Phase Resetting:

  • Mechanism that reorganizes oscillations across brain regions, enabling rapid coordination (e.g., during attention shifts).

Applications:

  • Phase-based synchronization methods (e.g., PLV, PLI) are widely used to study brain connectivity.

Amplitude and Power

  • Amplitude Scaling:
    • Slower oscillations (e.g., delta, theta) have higher amplitude because they recruit more neurons over larger areas.
    • Faster oscillations (e.g., beta, gamma) have lower amplitude due to smaller, localized networks.
  • 1/f Power Law:
    • Power decreases with frequency: Delta > Theta > Alpha > Beta > Gamma.
    • Reflects the scale-free nature of neural activity.

Practical Implications

  • Connectivity Studies:
    • Phase synchronization is a key marker for functional connectivity (e.g., PLV, wPLI).
    • Amplitude correlations (e.g., AEC) complement phase-based metrics.
  • Clinical Relevance:
    • Hypersynchrony (e.g., epilepsy) or desynchronization (e.g., schizophrenia) can indicate pathology.
  • Research Tools:
    • tACS and phase analysis help link oscillations to cognition (e.g., memory, perception).

Origin of Oscillations

Cortical-Thalamic Interactions

  • Primary Generator: The cortex is the main source of EEG signals, but its rhythmic activity is modulated by the thalamus.
  • Feedback Loops: The cortex and thalamus are connected via feed-forward and feedback loops, which shape the frequency and synchronization of EEG oscillations.
  • Thalamic Pacemaker Cells: Specialized thalamic neurons (e.g., in the nucleus reticularis) generate rhythmic bursts that drive cortical activation, contributing to oscillations like delta and spindles.

Mechanisms of Oscillation Generation

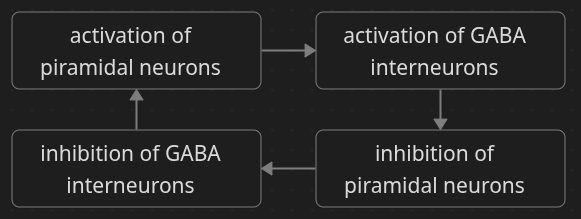

  • Excitatory/Inhibitory Balance:
    • EEG oscillations emerge from the dynamic balance between excitatory (glutamatergic) and inhibitory (GABAergic) neurons.
    • Example: Gamma rhythms arise from PING (Pyramidal-Interneuron Gamma) or ING (Interneuron Gamma) mechanisms, where inhibition paces excitation.
  • Intrinsic Cortical Rhythmicity:
    • Large cortical networks have an intrinsic capacity for rhythmicity, even without thalamic input. This is due to recurrent connections and synaptic properties.
  • Summation of Neuronal Activity:
    • EEG reflects the summed activity of thousands of neurons, characterized by:
      • Frequency (cycles per second)
      • Amplitude (voltage strength)
      • Phase (timing within the cycle)

Spread of Synchronization

  • Propagation Speed: Synchronization spreads across the cortex at ~10 cm/second, reflecting the speed of neuronal communication via axonal projections.
  • Feedback Loops: Oscillatory EEG activity reflects recurrent feedback between cortical areas and the thalamus, as well as within cortical networks.

Functional Implications

  • Thalamo-Cortical Loops:
    • Critical for sleep spindles, delta waves, and attentional gating.
  • Cortical Networks:
    • Generate alpha, beta, and gamma rhythms, which are linked to cognitive processes like attention, memory, and perception.
  • Excitatory/Inhibitory Alternation:
    • The alternating balance between excitation and inhibition underlies the generation of rhythmic activity and shapes the EEG spectrum.

Mechanisms of Neuronal Oscillations

Synchronization: The Foundation of EEG

  • Core Principle: EEG signals are only detectable because of synchronized activity among large groups of neurons. Single action potentials are too weak to record at the scalp.
  • Why It Matters: Without synchronization, EEG would not exist—it is the summation of coherent neuronal activity that generates measurable electrical fields.

Feedback Loops: Oscillators and Coupling

  • Oscillator Model: Neuronal oscillations arise from feedback loops between oscillators (groups of neurons or brain regions).
    • Oscillator → Coupling → Oscillator: Each oscillator influences others, creating rhythmic activity.
  • Types of Interaction:
    • Global Interaction: All oscillators in a network interact (e.g., widespread thalamo-cortical synchronization).
    • Local Interaction: Oscillators interact only with neighbors (e.g., localized cortical networks).

Thalamo-Cortical Interactions

The thalamus plays a pivotal role in generating and modulating cortical oscillations through two key responses:

Response Description Example
Recruiting Response Thalamic nuclei produce widespread cortical oscillations, recruiting large neuronal populations. Generalized spike-and-wave discharges in absence seizures.
Augmenting Response Thalamic nuclei produce localized cortical oscillations, enhancing activity in specific areas. Focal rhythmic activity during attention or sensory processing.

How Oscillations Emerge

  • Coupled Oscillators: Neuronal groups act as coupled oscillators, synchronizing their activity through mutual excitation and inhibition.
  • Thalamic Pacemaking: The thalamus acts as a central pacemaker, driving cortical rhythms via feedforward and feedback loops.
  • Cortical Networks: The cortex generates its own rhythms (e.g., alpha, beta, gamma) through recurrent connections and excitatory-inhibitory balance.

Functional Implications

  • Global Synchronization: Supports large-scale brain states (e.g., sleep, anesthesia).
  • Local Synchronization: Enables focused cognitive processes (e.g., attention, memory).
  • Pathological States: Disruptions in synchronization (e.g., hypersynchrony in epilepsy, desynchronization in schizophrenia) reflect neurological disorders.

Synchronization

Types of Synchronization

Term Definition Example
Synchrony Simultaneous occurrence of EEG waves across distinct brain regions. Alpha waves synchronized across occipital regions during eyes-closed rest.
Hypersynchrony Abnormally increased synchronization, often linked to pathological states. Generalized spike-and-wave discharges in epilepsy.
Asynchrony Non-coherent or desynchronized EEG waves across regions. Beta desynchronization during active cognition or movement.
Desynchronization Reduction in phase alignment, caused by direct cortical effects or indirect thalamic modulation. Transition from burst firing (e.g., during sleep) to single-spike activity (e.g., awake state).

Mechanisms of Phase Locking

Synchronization occurs when neurons oscillate in phase with each other. Phase locking can arise through:

  • Electrical Coupling: Direct electrical interactions.
  • Chemical Coupling: Synaptic transmission (excitatory/inhibitory).

Cellular Basis of Synchronization

  • Burst Firing: Synchronized bursts (e.g., during sleep spindles or seizures) reflect hypersynchrony.
  • Single-Spike Activity: Desynchronized, continuous firing (e.g., during active processing) reflects asynchrony.
  • Transition: Desynchronization often involves a shift from burst to single-spike patterns, modulated by cortical and thalamic inputs.

Functional and Clinical Implications

  • Cognition: Synchrony supports communication between brain regions (e.g., theta-gamma coupling in memory).
  • Pathology:
    • Hypersynchrony: Epilepsy, absence seizures.
    • Asynchrony: Schizophrenia, ADHD, or disrupted attention.
  • Plasticity: Synchronization shapes neural plasticity and learning.

Brain Rhythms

Major Frequency Bands

Band Frequency (Hz) Amplitude (μV) Primary Source Functional Associations
Delta 0.5–4 50–350 Thalamo-cortical loop Deep sleep, unconsciousness, pathology (e.g., brain injury).
Theta 4–8 10–150 Cortical/hippocampal Memory, emotion, drowsiness, early sleep stages.
Alpha 8–12 20–100 Cortical (occipital) Relaxed wakefulness, eyes closed, idling.
Beta 12–30 10–30 Cortical Active thinking, focus, motor planning.
Beta 1 12–20 Sensorimotor rhythm.
Beta 2 21–30 Cognitive processing.
Beta High 25–30 High cognitive load.
Gamma >30 Variable Cortical Attention, perception, memory binding, consciousness.
Gamma 1 31–40 Local cortical processing.
Gamma 2 41–50 Cross-regional coordination.
Gamma Lower 30–80 Broadband gamma activity.
Gamma Higher 80–150 High-frequency oscillations (e.g., during intense cognitive tasks).

Waveform Types

  • Monomorphic (Rhythmic): Waveforms are consistent in shape, frequency, and amplitude.
    • Example: Alpha waves during relaxation.
  • Polymorphic: Waveforms vary in frequency, amplitude, and morphology.
    • Example: EEG during complex cognitive tasks or pathological states.

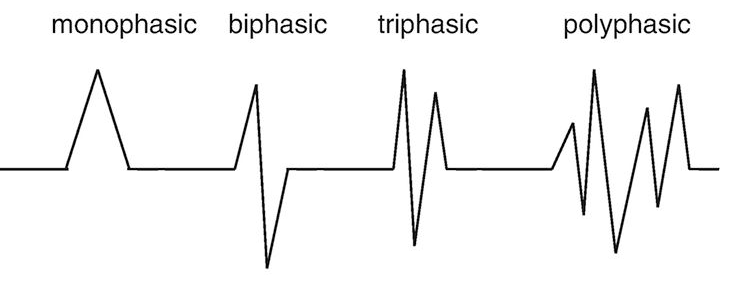

Waveform Type Description Example
Monophasic Single phase (one peak/trough). Some evoked potentials.
Biphasic Two phases (peak and trough). Sleep spindles.
Triphasic Three phases. Certain epileptic spikes.
Polyphasic Multiple phases; complex morphology. Polymorphic delta activity in deep sleep.

Delta Waves

Key Characteristics

  • Frequency: 0.5–4 Hz
  • Amplitude: Highest among EEG rhythms (50–350 μV).
  • Typical Occurrence:
    • Drowsiness and deep sleep (Slow-Wave Sleep, SWS).
    • Should not be present during normal wakefulness (except in specific tasks or pathologies).

Functional Roles

  • Cognitive Modulation:
    • Declarative Memory Consolidation: Critical for memory processing during SWS.
    • Attention Regulation:
      • ↓ Delta Power: When attention is directed to the external environment (e.g., sensory tasks).
      • ↑ Delta Power: When attention is focused on internal processing (e.g., mental calculations, introspection).
  • Task Difficulty: Delta power increases with mental task difficulty, reflecting enhanced internal processing demands.

Clinical Significance

Condition Delta Wave Characteristics Implications
Alzheimer’s Disease Increased spectral power in delta band. Linked to cognitive decline and neuronal degeneration.
Schizophrenia - **Reduced delta power during sleep (frontal and central regions). Associated with negative symptoms (e.g., apathy, social withdrawal).
- Low-voltage delta waves linked to frontal lobe dysfunction. Correlates with structural abnormalities (e.g., reduced gray matter volume).
Structural Abnormalities Focal delta activity in tumors or encephalopathy (diffuse delta). Indicates localized or global brain dysfunction.

Sources of Delta Waves

  1. Thalamus:
  • Thalamocortical neurons generate delta oscillations, especially during sleep.
  • Thalamic pacemaker cells drive widespread cortical delta activity.
  1. Cortex:
  • Frontal regions: Delta activity during slow-wave sleep and continuous attention tasks.
  • Cortical networks contribute to delta generation, particularly in pathological states.

Research and Clinical Insights

  • Sleep and Memory: Delta waves during SWS are essential for memory consolidation and synaptic plasticity.
  • Pathological Delta:
    • Focal delta (e.g., tumors) suggests localized lesions.
    • Diffuse delta (e.g., encephalopathy) indicates global brain dysfunction.
  • Schizophrenia:
    • Delta deficits during sleep may reflect frontal lobe dysfunction and contribute to negative symptoms (Sekimoto et al., 2011).
    • Low-voltage delta waves are linked to cognitive and structural abnormalities.

Theta Waves

Key Characteristics

  • Frequency: 4–8 Hz
  • Amplitude: 10–150 μV
  • Typical Occurrence:
    • Drowsiness (Rhythmic Mid-Temporal Theta of Drowsiness, RMTD)
    • Deep sleep (especially early stages)
    • Relaxed, meditative, or creative states
    • Locomotory activities (e.g., walking, running)
    • Cognitive tasks (e.g., working memory, spatial navigation)

Functional Roles

  • Arousal and Attention:
    • Theta activity is inversely related to arousal levels; increases during drowsiness and decreases with alertness.
  • Learning and Memory:
    • Hippocampal Theta: Critical for Hebbian synaptic plasticity, short-term potentiation (STP), and long-term potentiation (LTP).
      • LTP induction occurs at the positive phase of theta.
      • The strength of LTP increases linearly with theta power.
    • Pharmacological Evidence: Drugs that decrease theta activity impair learning, while those that enhance theta facilitate learning and memory.
    • Prefrontal-Hippocampal Synchrony: High theta coherence in the prefrontal cortex and hippocampus during spatial learning and novelty processing.
  • Cognitive Load:
    • Frontal Midline Theta (FMθ): Activated during arithmetic operations, working memory tasks, and meditation.
    • Negative Correlation with Performance: Higher theta power during cognitive tasks is often negatively correlated with performance, suggesting inefficient processing or increased mental effort.

Clinical and Cognitive Significance

Context Theta Wave Characteristics Implications
Alzheimer’s Disease (AD) Increased spectral power in the theta band. Linked to cognitive decline and memory deficits.
Learning and Memory Theta power correlates with LTP strength and memory encoding. Theta enhancement facilitates synaptic plasticity and learning.
Meditation Increased theta activity during focused attention and mindfulness. Associated with relaxation and creative thinking.
Cognitive Load Theta power increases with mental effort but may reflect inefficiency. High theta can indicate struggling with task demands.
Locomotion Theta rhythms in the hippocampus during movement. Supports spatial navigation and motor-coordination.

Sources of Theta Waves

  1. Hippocampus:
  • Primary generator of theta rhythms, especially during memory tasks, spatial navigation, and learning.
  • Linked to LTP and Hebbian plasticity.
  1. Cortex:
  • Frontal Midline Theta (FMθ): Generated in the prefrontal cortex during cognitive tasks.
  • Temporal Theta: Observed during drowsiness and relaxation.

Research and Clinical Insights

  • Theta and LTP: Theta rhythms gate the timing of synaptic plasticity, making them critical for memory formation.
  • Prefrontal-Hippocampal Coherence: High theta synchrony between these regions supports working memory and executive function.
  • Pharmacological Modulation: Theta-enhancing drugs (e.g., cholinergics) can improve learning, while theta-suppressing drugs (e.g., anesthetics) impair it.
  • Cognitive Performance: While theta is essential for memory, excessive theta during tasks may indicate cognitive inefficiency or mental fatigue.

Alpha Waves

Key Characteristics

  • Frequency: 8–12 Hz
  • Amplitude: 20–100 μV
  • Location: Posterior dominant (occipital/parietal regions), but present across the cortex.
  • Development: Emerges after age 3 and becomes the hallmark of the normal awake adult brain.

Functional Roles

  • Posterior Dominant Alpha Rhythm (PDAR):
    • Index of Cortical Inactivity: Reflects a relaxed, resting state with eyes closed.
    • Reactivity: Blocked by eye opening (a key clinical sign of normal brain function).
    • Phasic Inhibition: Acts as a gate/filter, suppressing distracting sensory inputs to focus resources.
  • Cognitive Performance:
    • Positive Correlation: Higher alpha power (and its suppression during tasks) is linked to better cognitive and memory performance.
    • Alpha vs. Theta: Good performance is associated with high alpha/low theta power.
    • Speed of Processing: Alpha amplitude correlates with faster information processing.
  • Aging and Disorders:
    • Aging: Alpha frequency and power decrease with age.
    • Alzheimer’s Disease (AD): Reduced alpha frequency and spectral power.
    • Children vs. Adults: Children show alpha > theta; in aging or neurological disorders, this reverses (alpha < theta).

Clinical Significance

Context Alpha Wave Characteristics Implications
Normal Reactivity PDAR blocks with eye opening (“alpha blocking”). Confirms normal brain function.
Cognitive Health Higher alpha power and suppression correlate with better memory and processing speed. Marker of efficient neural processing.
Aging/AD ↓ Alpha frequency/power; ↑ theta power. Indicates cognitive decline or neural degeneration.
Asymmetry Normal L vs. R amplitude asymmetry (<50% difference; often R > L). >2:1 asymmetry may suggest pathology (e.g., focal lesions).
Alpha Squeak Transient increase in alpha frequency (e.g., during drowsiness). Physiological variant; no clinical concern.

Anterior-Posterior Gradient

  • Alpha: Slower, higher amplitude waves dominate posterior regions (occipital/parietal).
  • Beta: Faster, lower amplitude waves dominate anterior regions (frontal).
  • Functional Implication: Reflects the spatial organization of cortical activity, with posterior alpha linked to visual/idling states and anterior beta linked to active processing.

Reactivity of PDAR

  • Eye Opening: PDAR disappears (desynchronizes) with visual input, demonstrating alpha blocking.
  • Cognitive Tasks: Alpha power suppresses during tasks requiring attention, reflecting engagement of neural resources.
  • Relaxation: Alpha power increases during resting, eyes-closed states, indicating cortical idling.

Beta Waves

Key Characteristics

  • Frequency: 12–30 Hz
    • Beta 1: 12–20 Hz
    • Beta 2: 21–30 Hz
  • Amplitude: Low (10–30 μV)
  • Location: Maximum amplitude in fronto-central regions, symmetrically distributed during focus.

Functional Roles

  • Cognitive States:
    • Alertness and concentration (e.g., during problem-solving or learning).
    • Anxiety (excessive beta activity may reflect heightened stress or overarousal).
  • Symmetry: Typically detected symmetrically over frontal regions during focused tasks.
  • Asymmetry: Up to 35% difference between left (L) and right (R) beta due to skull thickness asymmetry (not pathological).

Clinical Significance

Context Beta Wave Characteristics Implications
Schizophrenia Enhanced high-frequency beta (16–25.5 Hz) activity. Linked to cognitive dysfunction or neural hyperarousal.
Medication Effects Diffuse beta activity with benzodiazepines or tricyclic antidepressants (TCAs). Reflects drug-induced changes in neural excitability.
Anxiety/Stress Excessive beta may indicate overarousal or anxiety disorders. Target for biofeedback or relaxation therapies.
Focus/Concentration Symmetrical frontal beta during cognitive tasks. Marker of engaged attention and active processing.

Gamma Waves

Key Characteristics

  • Frequency: >30 Hz (often subdivided into 30–80 Hz and 80–150 Hz bands).
    • Classic Gamma: 30–80 Hz
    • High Gamma: 80–150 Hz
  • Amplitude: Low (typically <10 μV, but variable).
  • Location: Prominent in frontocentral regions and somatosensory cortex, especially during active processing.

Functional Roles

  • Neural Synchronization:
    • Functional Coupling: Gamma oscillations (~37–43 Hz) enable simultaneous firing of neurons across distant brain regions, even without direct structural connections.
    • Neuronal Clusters: Facilitates dynamic linking of neuronal groups for task performance.
  • Cognitive and Motor Functions:
    • Memory Formation: Critical for encoding and retrieval.
    • Sensory Processing: Integrates cross-modal sensory information (e.g., vision + touch).
    • Attention: Enhances selective attention and perceptual binding.
    • Linguistic Processing: Supports speech comprehension and language production.
    • Motor Planning: Coordinates motor actions and movement planning.
    • Internal Thoughts: Linked to conscious awareness and working memory.

Clinical and Scientific Context

  • Blood Flow Correlation: Gamma activity is often detected in regions of intensive blood flow (e.g., frontocentral areas), reflecting active neural metabolism.
  • Debate: Gamma vs. Muscle Artifacts:
    • Some researchers argue that high-frequency gamma (>60 Hz) may partly reflect muscle artifacts (e.g., from facial or neck muscles).
    • Evidence for Gamma:
      • Gamma oscillations are recorded in invasive EEG and animal models, supporting their neural origin.
      • Task-specific modulation (e.g., gamma power increases during attention tasks) suggests functional relevance.
  • Caution: High-frequency gamma (>80 Hz) should be interpreted carefully to rule out artifacts.

Other Brain Waves

Mu Rhythm

  • Frequency: 8–12 Hz (similar to alpha).
  • Location: Rolandic/central regions (motor and sensory cortex), maximal at C4.
  • Characteristics:
    • Motor/Sensory Alpha: Detected during imagined or actual movement.
    • Asymmetry: Often asymmetric and asynchronous between hemispheres; may be unilateral.
    • Amplitude: Similar to alpha rhythm.
    • Reactivity: Suppressed (desynchronized) during motor tasks; enhanced (synchronized) at rest.

Sleep-Related Waves

Wave Frequency (Hz) Location/Characteristics Functional/Clinical Role
K-Complex ~0.5–2 Spontaneous or evoked (e.g., by auditory stimuli) during NREM sleep. Marker of sleep stability and memory consolidation.
Sleep Spindles 11–15 (sigma) Widespread, maximal in central regions. Linked to memory processing and cortical plasticity.
Vertex Waves ~200 ms duration Sharp waves over the vertex (Cz) during light sleep (Stage N2). Indicate sleep depth and arousal threshold.

Artifacts and Special Patterns

Wave Frequency (Hz) Location/Characteristics Notes
Breach Rhythm Variable Localized to cranial bone defects (e.g., post-surgery). Mimics focal abnormalities; correlate with anatomy.
Phi <4 Occurs within 2 seconds of eye closure. Transient; linked to eye-closure reactivity.
Kappa ~8–12 Anterior-temporal; artifact from lateral eyeball oscillations. Can mimic temporal alpha; rule out eye movement.
Tau ~8–12 Temporal alpha variant. Similar to alpha but localized to temporal regions.
Chi 11–17 Rolandic mu-like pattern observed during Hatha Yoga exercises. Reflects motor/sensory idling in meditative states.
Lambda ~1–3 Occipital; linked to saccadic eye movements during visual exploration. Artifactual but reflects visual processing.

High-Frequency and Rare Patterns

Wave Frequency (Hz) Location/Characteristics Functional/Clinical Role
Phi Complex 9.2–11.5 Right centroparietal cortex; linked to social coordination tasks (Tognoli et al., 2007). Suggests interpersonal synchronization.
Squeak Variable Temporary frequency increase after eye-closing (e.g., alpha “squeak”). Physiological variant; no clinical concern.
Omega 60–120 Retinal origin; detected in visual pathways. Reflects retinal processing; not cortical.
Rho ~250 Hippocampal ripples; sharp, high-frequency bursts. Linked to memory replay during sleep.
Sigma ~600 Thalamocortical bursts; extremely high-frequency. Role in sleep spindles and thalamic pacing.

Kuramoto Model

Synchronization of Coupled Oscillators

The Kuramoto model describes how a population of coupled oscillators (e.g., neurons, fireflies, or power grids) synchronizes over time. It is widely used to study collective synchronization in biological and physical systems, including EEG rhythms and neural networks.

Mathematical Formulation

The model is defined by the following differential equation for each oscillator nnn:

\[ \frac{d\Theta_n}{dt} = \omega_n + \frac{K}{N} \sum_{m=0}^{N-1} \sin(\Theta_m - \Theta_n) \]

where:
\(\Theta_n\) is the phase of the n-th oscillator (time-dependent),
\(\omega_n\) is the natural (intrinsic) frequency of the n-th oscillator; if all \(\omega_n\) are identical, the system is homogeneous; otherwise, it is heterogeneous,
\(K\) is the coupling strength; determines how strongly oscillators influence each other:
- K = 0: no coupling; oscillators evolve independently - K > 0: coupling promotes synchronization \(N\) is the total number of oscillators in the system,
\(\frac{K}{N} \sum_{m=0}^{N-1} \sin(\Theta_m - \Theta_n)\) is the coupling term; represents the average influence of all other oscillators on oscillator \(n\); the sine function ensures that oscillators attract or repel each other based on their phase differences.

Key Concepts

Phase Synchronization: Oscillators adjust their phases (\(\Theta_n\)) to minimize differences, leading to coherent collective behavior.

Order Parameter: A metric (\(r\)) quantifies the degree of synchronization in the system:

\[ r e^{i\psi} = \frac{1}{N} \sum_{m=0}^{N-1} e^{i\Theta_m} \]

where \(\psi\) is the average phase of the population.

The system is:

  • r ≈ 0: desynchronized (random phases)
  • r ≈ 1: fully synchronized (aligned phases)

Critical Coupling: (\(K_c\)) For heterogeneous oscillators, synchronization emerges abruptly when \(K\) exceeds a critical threshold \(K_c\). This is a phase transition, analogous to physical systems like ferromagnets.

Applications in Neuroscience

  • EEG Rhythms: Models how neuronal oscillations (e.g., alpha, beta, gamma) synchronize across brain regions.
  • Epilepsy: Explains hypersynchronization during seizures as a result of strong coupling (KKK).
  • Cognitive Processes: Synchronization of neural ensembles may underlie attention, memory, and perception.
  • Brain Connectivity: Helps study functional connectivity between brain areas using phase synchronization metrics.

Practical Implications

  • Tuning K: Adjusting coupling strength can model healthy vs. pathological brain states (e.g., low \(K\) for desynchronization in ADHD, high \(K\) for hypersynchronization in epilepsy).
  • Heterogeneity: Natural frequency differences (\(\omega_n\)) reflect individual variability in neural populations.
  • Dynamic Systems: The model can be extended to include time delays, noise, or adaptive coupling, making it versatile for real-world applications.
